Broadcast Radio Live (BR Live) is an Audio over IP application that allows you to connect presenters, studios, and contributors through low-latency peer-to-peer audio — ideal for live radio production.
Based on Quick Setup Guide v1.5 (Updated 22/04/2025) - Download at bottom of article.
? Prerequisites
Before setup:
Install BR Live on a studio/automation PC (can be the Myriad Playout PC).
Configure a clean feed (mix-minus) using your mixer or Virtual Audio Cable.
Ensure:
UDP traffic is not blocked
Universal Plug and Play (UPnP) is enabled
Windows Firewall allows BR Live
✔️ Requires Myriad Remote Edit Server v5.26+ and Myriad Anywhere Pro (Cloud)
? Step-by-Step Setup
1. Install the BR Live Studio Client
Download and run the installer. Admin rights may be required.
On first launch, you’ll see a setup screen:
2. Configure Audio Devices
Choose:
Input Device (clean feed)
Output Device (mixer return)
(Optional) Talkback Device
3. Join a Room
Click Join Room and sign in with your Broadcast.Radio credentials.
If needed, select your Station:

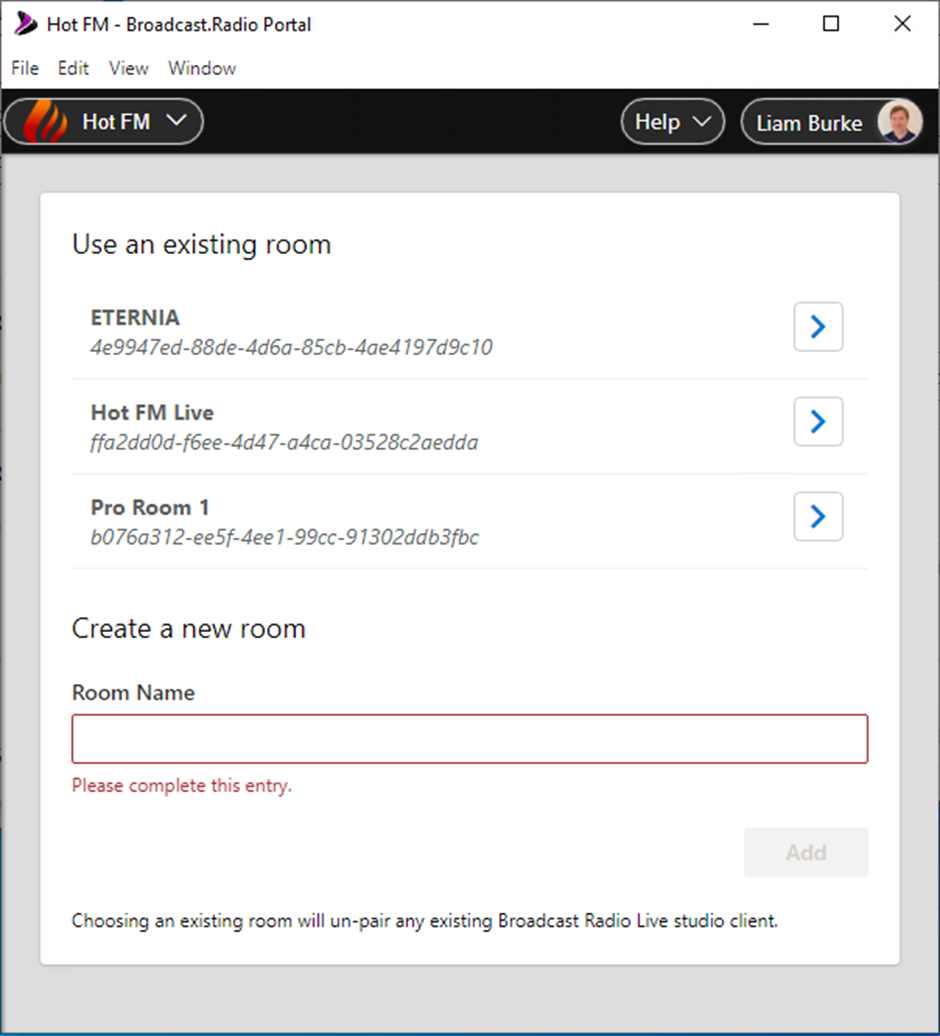

Create or select a Room (each BR Live instance needs a unique Room):
The connected Audio Room will be displayed in the Remote Connections section.
4. Connect to Myriad Anywhere Cloud
Click Connect, enter your Anywhere Cloud URL, and log in with Myriad Directory credentials.
Choose your Station and Myriad Playout Location:
If the location isn’t visible, enable it in Myriad Playout Settings Menu > Database Settings > Locations.
Once complete, click Start:
5. Set Up Directory Permissions
Go to Security > User Security Settings. Edit the relevant Security Group:
Enable:
- ✅ Can connect using Myriad Anywhere and BR Live
Choose User Role: Announcer, Presenter, or Producer
• Announcer
Announcers are able to connect, but can’t put their own microphone live. Their microphone can be controlled by any Producers connected to the room.
• Presenter
Presenters have permission to make their own mic live, but cannot control the microphones of other connected users.
• Producers
Producers have full access to the BR Live mixer, can turn any microphone on/off, and change advanced room settings.
6. Test the Audio
In Myriad Anywhere Cloud, enter Studio Control Mode and click Connect To Audio:

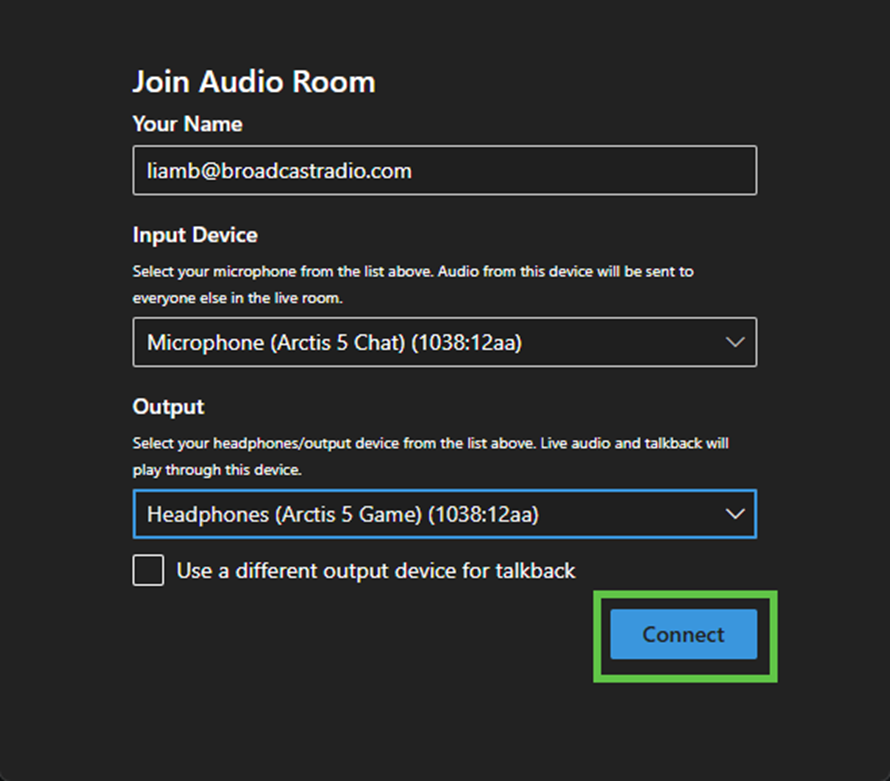

Select your Input and Output Devices and click Connect:
Click Start to begin the connection:
If you see Studio Offline, refer to firewall/network troubleshooting.
⚙️ Additional Settings
Click the BR Live logo > Audio Settings:
Configure:
| Setting | Purpose |
|---|---|
| 1,2,3 - Input/Output Device | Set clean feed and talkback |
| 4 - Data Saver Mode | Lower bitrate (96kbps) |
| 5 - Additional Delay | Add buffer (100–4000 ms) |
| 6 - Audio Mix Options | Stereo, mono, or single channel |
| 7 - Audio Repair Settings | Advanced options – leave off |
✅ Summary
Broadcast Radio Live allows you to:
Seamlessly connect remote users to studios
Use clean feed audio and robust security roles
Pair directly with Myriad Anywhere Cloud
Configure with high resilience and low latency
It’s the ultimate solution for remote radio contribution.
? For support or advanced configuration, contact support@broadcastradio.com.
