Myriad Schedule Pro has built in support for many Playout/Automation systems, and most other systems will also be able to import Logs exported by using the various "Generic" export formats.
Some Playout Systems require additional configuration or there as special considerations required when working with these systems.
Station Playlist Creator Media/Audio
For each Media Item in your Myriad Schedule database you should enter the full Filename to the audio file in the exact same format as SPL expects as this is used when Myriad writes the Log file. If there is no filename entered then Myriad will fallback on using the Media External Reference or Media ID as configured in the Station Playlist Export Settings window.
Adding an Export to Station Playlist Creator
To add an export to PlayIt Live, in Myriad Schedule Pro, click on the Stations menu, then Station Settings, then select the Log Import/Export tab. In the "Log Export" section at the bottom, click the 'Add' button on the right hand side and select 'Station Playlist Log file'.

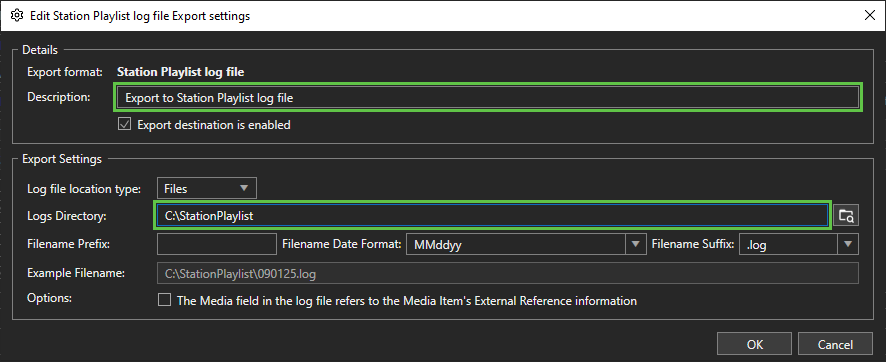

On the window that opens, enter a suitable Description and enter/select the Logs Directory that you want the files to be exported to:
Station Playlist Break Notes:
You can use either Script items direct in the Clock OR Myriad Media Items set as "Commands" to send Break notes to the Station Playlist log file - for example a script of *A1 to tell Station Playlist to activate Automation mode. Please see the Station Playlist documentation for more information about supported Break Note codes.
Myriad Schedule Clock Item Types and their Station Playlist equivalents
Myriad Clock Item Type | Station Playlist |
---|---|
Absolute Time | 'Instant' event |
Soft Time | 'Play next' event |
When configuring the Station Playlist Music Log Importer you should use these settings:
Item | Position | Length | Contain/Other |
---|---|---|---|
Hour Markers | 1 | 1 | H |
Audio Tracks | 0 | 0 | |
Break Notes | 1 | 1 | B |
Voice Intros | 0 | 1 | I |
Voice Outros | 0 | 1 | O |
Commercials | 1 | 1 | C |
Spots | 1 | 1 | S |
Jingles | 1 | 1 | J |
Fixed Events | 1 | 1 | @ |
Instant Events | 1 | 1 | ! |
Non-instant Events | 1 | 1 | ~ |
Song Intro Time | 93 | 8 | |
* Hour | 2 | 2 | In Hour Marker only Checked |
Minute | 5 | 2 | |
Second | 8 | 2 | |
Category | 0 | 0 | |
Filename | 102 | 255 | |
Break Note | 102 | 255 | |
Artist | 52 | 40 | |
Title | 11 | 40 |
