Using Media Players in Myriad Playout 6

The media players in Myriad Playout 6 are the primary tools used to play back audio-based media items, including audio files and live streams. They are feature-rich but easy to use, providing real-time feedback and precise control over playout behavior.

This article provides a full breakdown of the default player layout and the key controls and indicators available to you.

? Media Player Layout Options

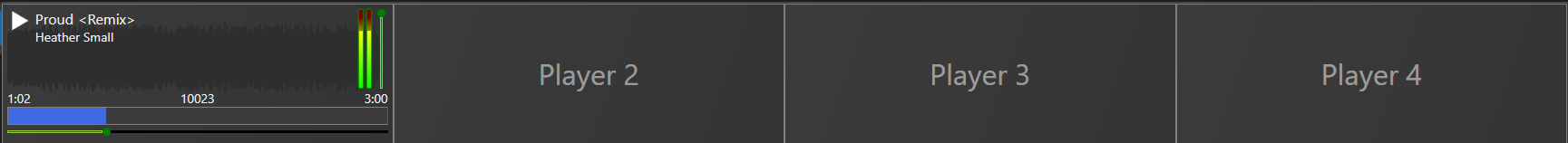

Myriad supports several player layout configurations, including:

• Standard players (default, full-featured layout)

• Mini players (minimalist, less visual info)


• Vertically stacked players (for dynamic or multi-channel layouts)



? The player layout can vary depending on the dynamic layout you're working in, but the core features remain consistent.

? Basic Player Interface Breakdown

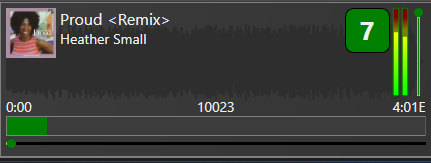

Here’s what you’ll find in the standard media player:

Feature	Description
Title & Artist	Displayed at the top of the player
Count-Up Timer	Shows elapsed time since play started
Countdown Timer	Shows time remaining to the end or intro/extra
End Type Indicator	A letter (e.g., E, F) shows how the track will end
Media ID	Displays the unique ID of the playing item
Playback Controls	Includes Play/Pause, Re-Cue, and Eject
Intro / Extro Countdown	Visual countdown to the intro or extra point
VU Meters	Visual confirmation that audio is playing
Volume Control	Adjust the player’s output volume

▶️ Playback Controls Explained

• Play/Pause: A single button that toggles between starting and pausing playback

• Re-Cue: Rewinds the media item to the start (or to cue point)

• Eject: Stops playback and removes the item from the player

⏱ Countdown & Intro Behavior

• A square icon next to the countdown indicates intro time (time remaining until vocals)



• A circle icon indicates a countdown to the extro (automated segue point)

• Once the intro ends, the intro counter disappears and the player continues normal playback

? Scrubbing & Skipping

• Use the progress bar slider to scrub forward or backward in the track

• You can also right-click on the progress bar to jump to a specific point

• Perfect for cueing the end of a track or checking transitions

? Visual Playback Feedback

• Progress bar fills as the track plays

• Countdown alerts show when nearing the extro and final seconds

• After the extro, the system plays out any remaining audio until the track ends

When the media item finishes:

• It is automatically ejected from the player

• The player is ready for the next item

✅ Summary

Myriad’s media players provide a flexible and responsive way to manage audio playback, with real-time feedback and intuitive controls:

• Use countdowns, progress bars, and VU meters for confidence

• Leverage intro/extro indicators for tight segues

• Easily scrub, cue, or eject as needed

• Automatically handle item transitions in automation or live assist

With just a few clicks, you’re always in control of what goes out on air.
