Myriad Control Panel - Myriad Cloud System Controls - Adding A New Encoder Output

All Myriad Cloud subscriptions include streaming using the B.R Streaming platform. Myriad Cloud Pro & Ultimate customers can add additional Encode Outputs to send the Myriad Cloud audio output to 3rd party streaming platforms or DAB multiplex operators.

Myriad Cloud Basic & Standard customers can purchase additional Encoder Outputs by contacting our sales team.

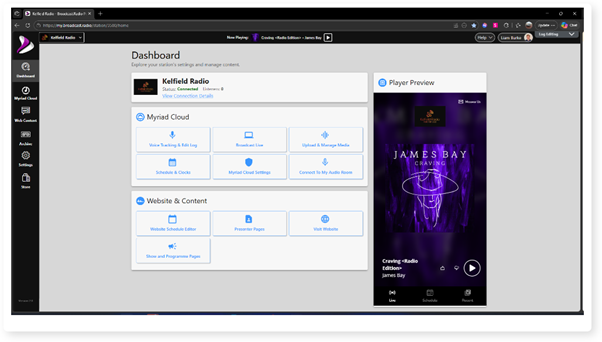

1. Login to your Broadcast.Radio portal.

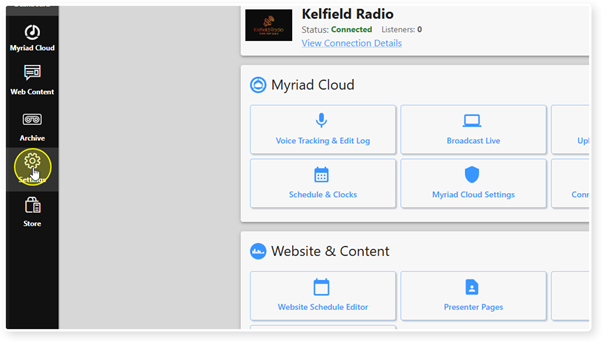

2. Click on the Settings menu option.

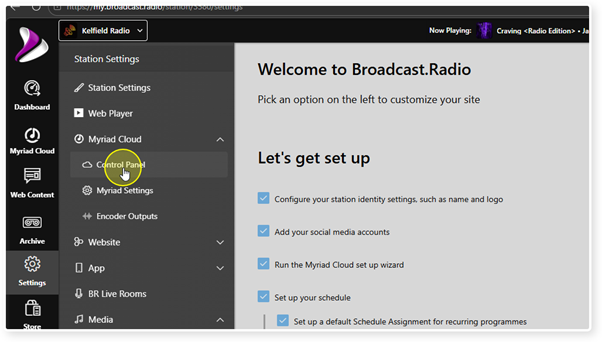

3. Expand the Myriad / Myriad Cloud option and select Control Panel.

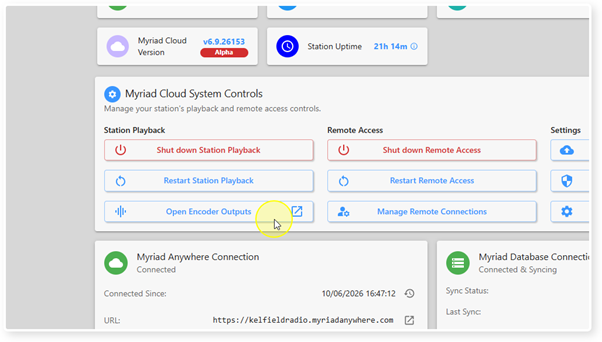

4. Click on the Open Encoder Outputs button in the Myriad Cloud System Controls section.

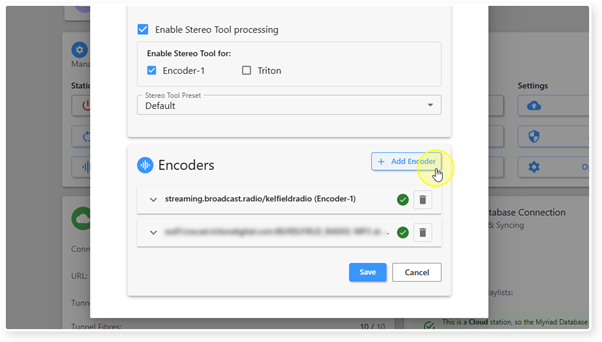

5. In the Encoders section, click on the Add Encoder button.

6. Your 3rd party streaming provider should provide the information needed to complete the settings for the new Encoder Output.

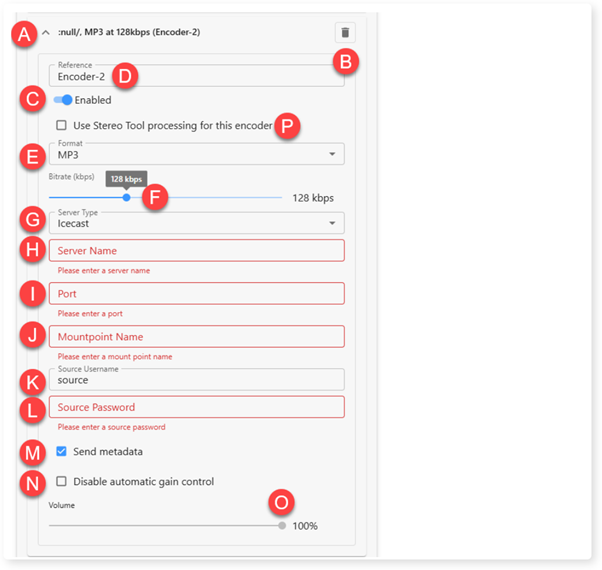

The options are:

A - Expand or contract setting details panel.

B - Delete Encoder Output.

C - Enable / Disable Encoder Output.

D - Set an encoder rerefence.

E - Set output format (MP3, AAC, HE-AAC)

F - Bitrate (quality). This option is limited to the top bitrate included in your subscription.

G - Set Server Type to connected to (Icecast or Shoutcast).

H - Server Name is used to set the server URL (address) for the 3rd party streaming server. Your services provider will provide this information.

I - Port allows you to specify the port to connect to. Your services provider will provide this information.

J - Mountpoint Name is the unique name for your service on the streaming server. Your services provider will provide this information.

K - Source Username - leave this set to Source unless told otherwise by your server provider.

L - Type in the password for your stream connection. Your services provider will provide this information.

M - Send metadata embedded in the stream.

N - Toggle whether to use automatic gain control (AGC) on this stream encoder output (this increases the volume automatically to provide a smoother audio level).

O - Set the audio volume (1-100%) for the stream output.

P - Use the optional Stereo Tool audio processing on this Encoder Output.

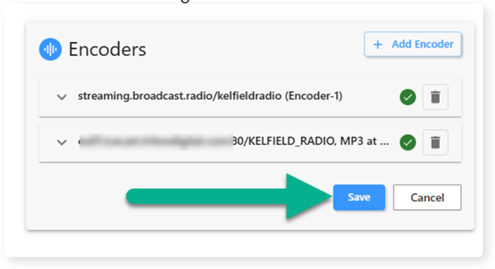

7. When you have added all the required information, click on the Save button to save the new settings.
